Open Office Space Planning Guide: Dimensions and Layouts
An open space office blends communal and private areas, facilitating collaboration, idea exchange, teamwork, and solo-focused work. This type of space provides great design flexibility, but it needs to be planned in a space-efficient manner that optimizes efficiency. Achieving this requires careful curation of workstations combined with private areas and other furniture pieces and facilities within the space.

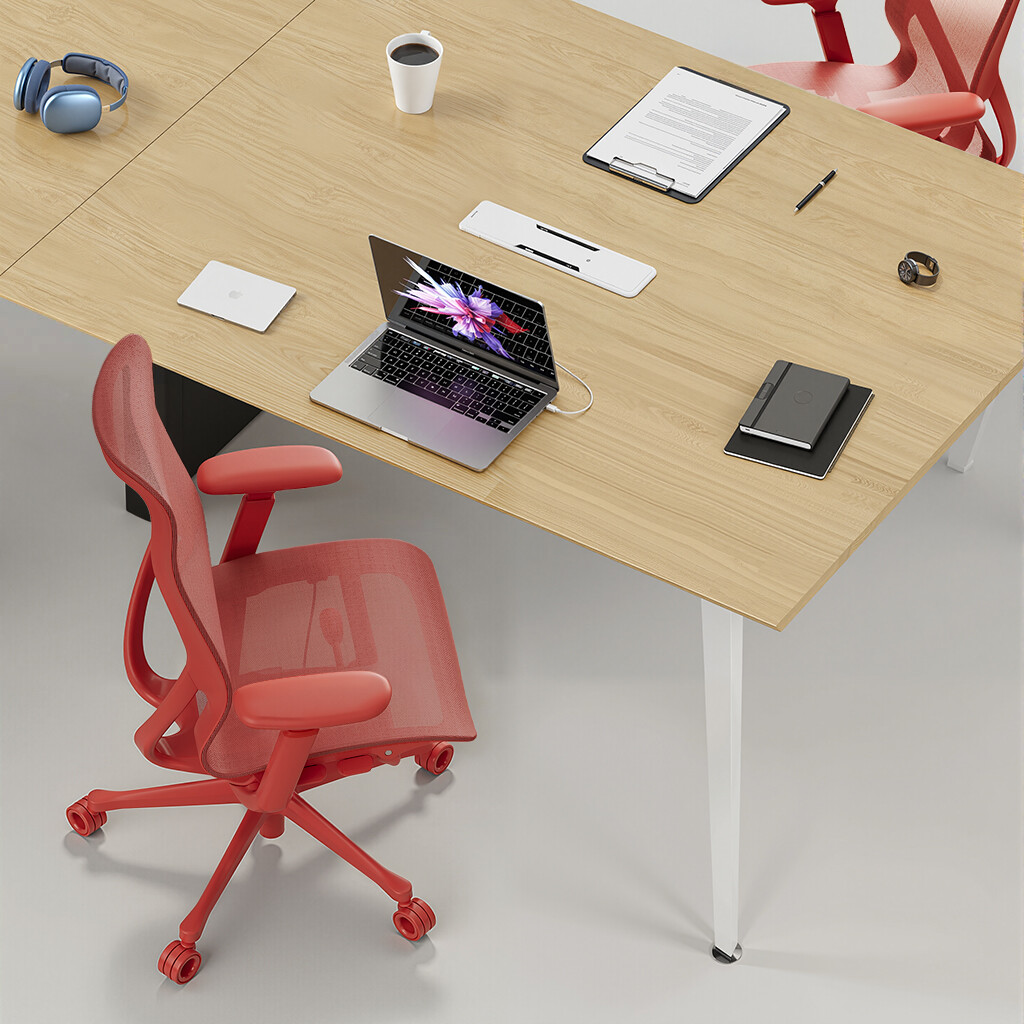

Chair Dimensions
Office chairs are designed for comfort and ergonomic support during long work hours. They typically have adjustable features like height and backrest, and their standard dimensions range from 70 to 80 cm (27.6–31.5 in) in width and 60 to 80 cm (23.6–31.5 in) in depth.
office chair

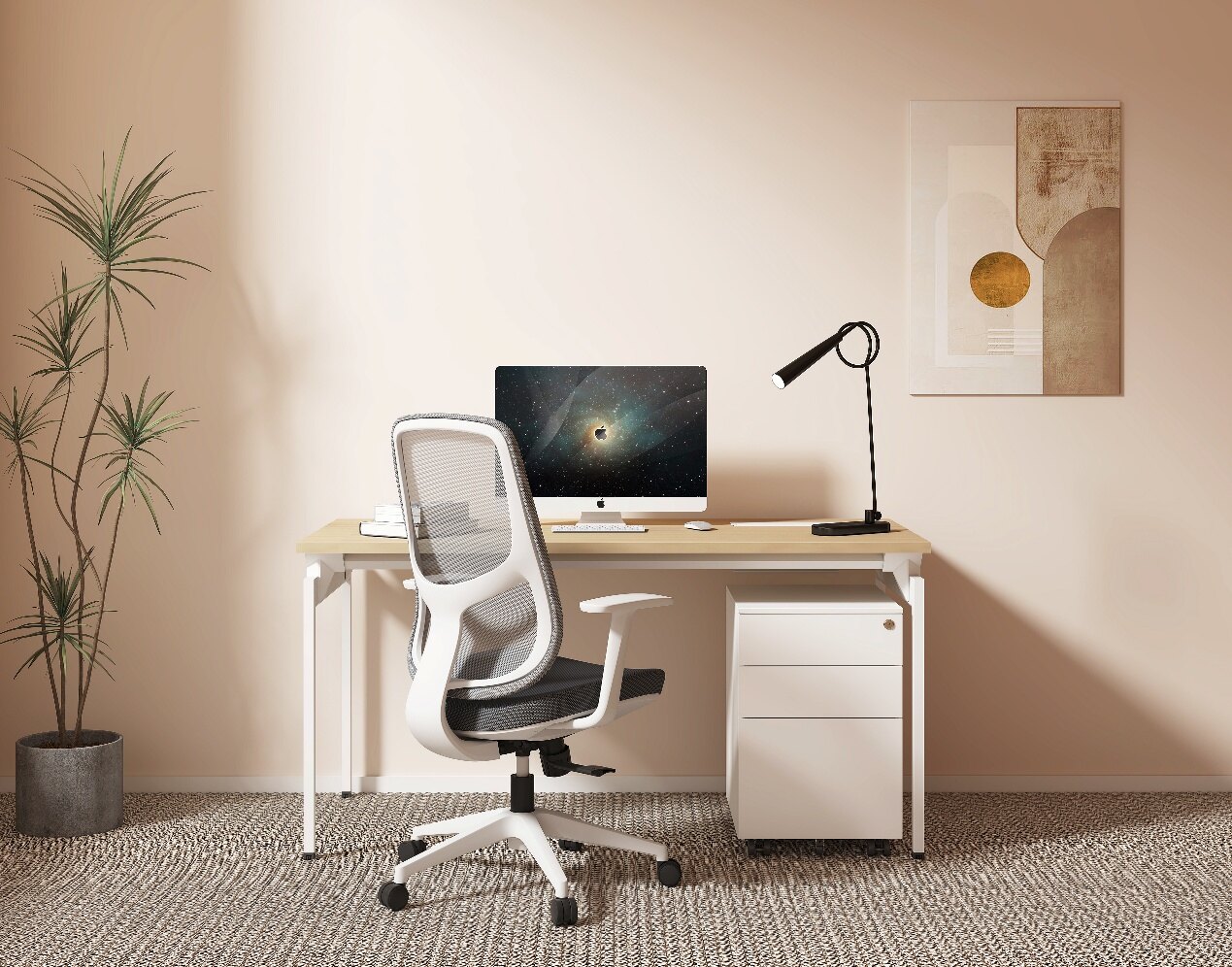

Individual Workstation Dimensions
Office desks commonly measure 120–160 cm (47.2–63.0 in) in width and 60–80 cm (23.6–31.5 in) in depth, providing ample space for computer equipment and paperwork.
office desks

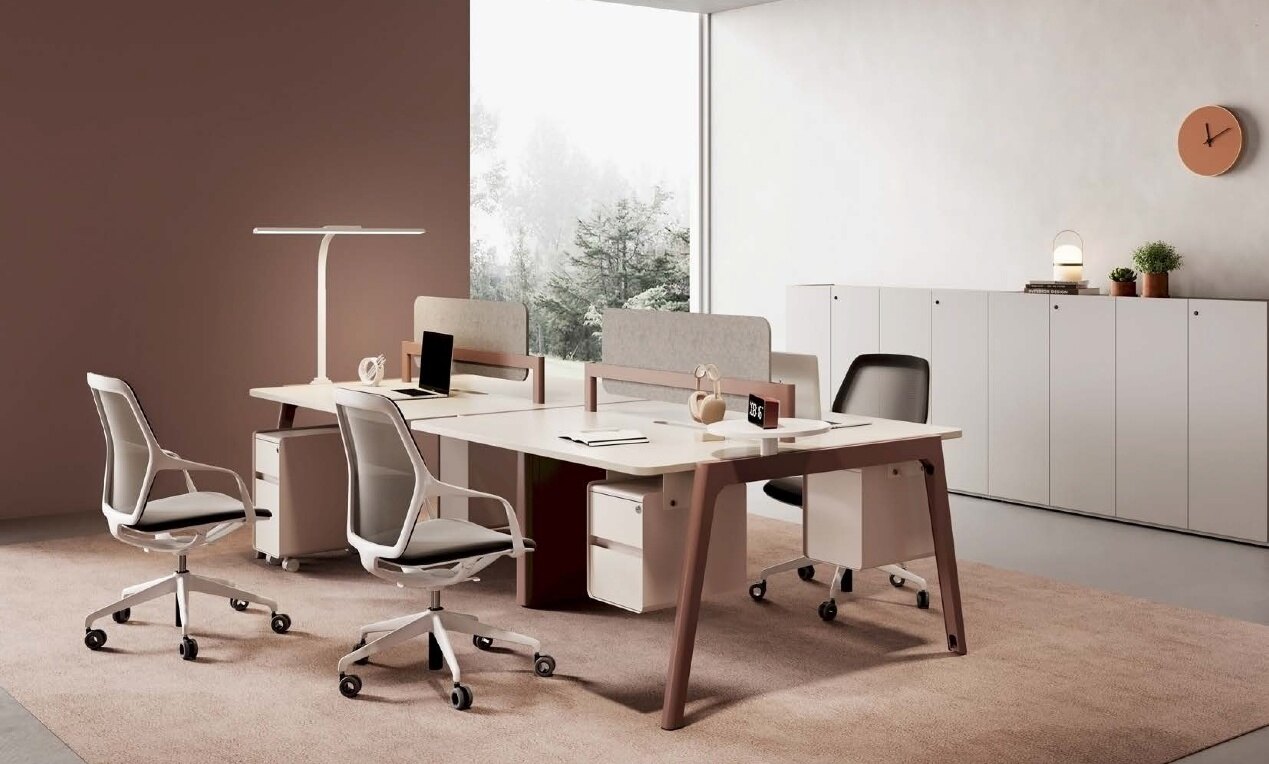

Work‑Group / Benching Workstation
Common bench workstations: 2-seat, 4-seat, and 6-seat face-to-face or back-to-back workstations.
Single module workstations use standard individual desk dimensions: 48-60 in W × 24-30 in D.
Internal clearance between modules (back-to-back):
Min: 78 in (6.5 ft); Rec: 84-96 in (7-8 ft), allowing employees on both sides to back up their chairs simultaneously without interference.
bench workstation

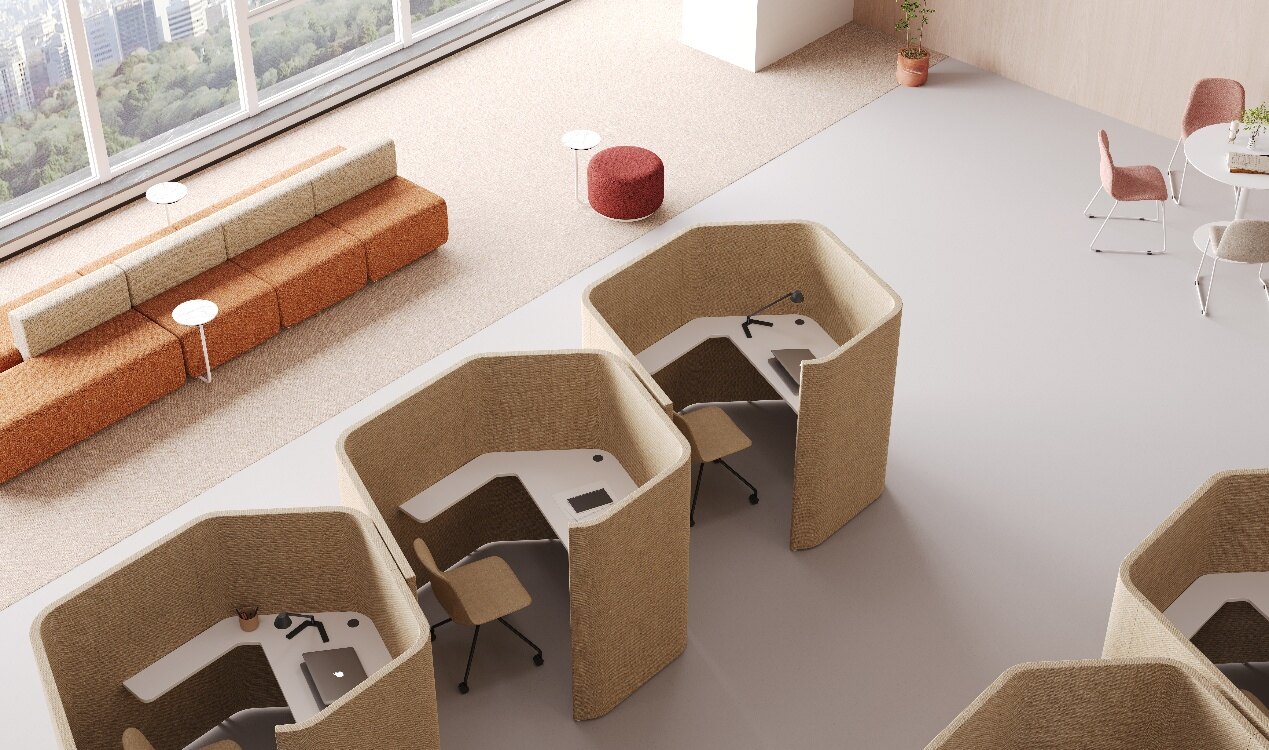

Booth Dimensions
Private booths are enclosed spaces designed to provide privacy and focus within an open space office environment. These compact work areas typically fit one to four people and come in various shapes and sizes, while a benchmark size could be around 120 to 200 cm (47.2-78.7 in) in width and in depth.
private booth
Storage Dimensions
Office storage units are essential organizational components that keep documents, supplies, and personal items neatly stored and easily accessible. These units, such as cabinets or shelving systems, come in various sizes and configurations, as demonstrated in a few examples above.
office storage
Circulation Aisle: Open-space core circulation path with all passageways clear width.
|
Aisle Type |
Planning Reference |
Recommended Width |
Use Case |
|
Main Aisle |
44 in (1118 mm) |
60–72 in (1524–1829 mm) |
Primary office circulation; verify local egress requirements. |
|
Secondary Aisle |
36 in (914 mm) |
42–48 in (1067–1219 mm) |
Passage between workstation rows. |
|
Cabinet Access Aisle |
30 in (762 mm) |
36 in (914 mm) |
Standing space in front of cabinets, with drawers fully extended. |
|
Workstation-End Clearance |
48 in (1219 mm) |
60 in (1524 mm) |
Space for turning and moving carts at the ends of workstation groups. |
Computer Screen & Keyboard
Computer screens commonly have dimensions ranging from approximately 50 to 70 cm / 12"-47.5" in width and 10 to 20 cm / 8.7"-9" in depth.
Key points for professional planning advice for clients:
1. Don't just draw the furniture outline; ensure that chairs are recessed, drawers open, and aisles are clear. Many drawings show furniture placement that looks good, but in reality, recessed chairs can cause obstruction.
2. (Reference area per person for open-plan offices, including workstations + aisles + partial storage)
Standard density: 70-85 sq.ft/person
High-density hot-desking: 60-70 sq.ft/person
Management positions (supervisors/managers' open workstations): 90-120 sq.ft/person
3. Common mistake with back-to-back workstations: Only calculating the depth of the two desks, ignoring the space for chairs to be recessed on both sides. There should be at least 78 inches between desk edges.
4. Avoid using 24-inch deep cabinets along the main aisle; prioritize 18-inch deep cabinets to avoid reducing passage width.
5. Accessibility: Maintain the required clear width along accessible routes. Under the ADA Standards, accessible walking surfaces generally require a minimum clear width of 36 inches (915 mm), subject to applicable exceptions. Main aisles and exit access routes may require greater widths under local building and fire codes.
Conclusion
A floor plan may look efficient on paper but still feel crowded once chairs move back, drawers open, and people start using the aisles. That is why desk dimensions, workstation spacing, storage access, circulation, and accessibility need to be considered together rather than separately. These planning references can help avoid common layout problems, while the final dimensions should still follow local building and safety requirements. If you are planning a new office or improving an existing layout, contact M&W to discuss a practical workstation plan for your space.
