How to Choose Office Movable Partitions: Types, Specs & Installation Guide

Why Your Office Space Needs Flexible Division





Your office layout shouldn't dictate your business agility. Permanent walls commit you to fixed configurations while movable partitions transform spaces in minutes—conference room to training hall, open plan to private offices. For facilities managers, this isn't just convenience—it's eliminating $15K+ renovation costs per layout change.



Movable Partition Types: Matching Systems to Your Building Structure





Option 1: Direct Mount to Concrete Slab (Simplest Installation)



Ideal for spaces with ≤15" headroom between false ceiling and concrete slab. Mounting brackets fix directly to concrete—no secondary structure needed.

✅  Best for: Quick installations under tight deadlines

⚠ Limitation: Difficult to adjust post-installation

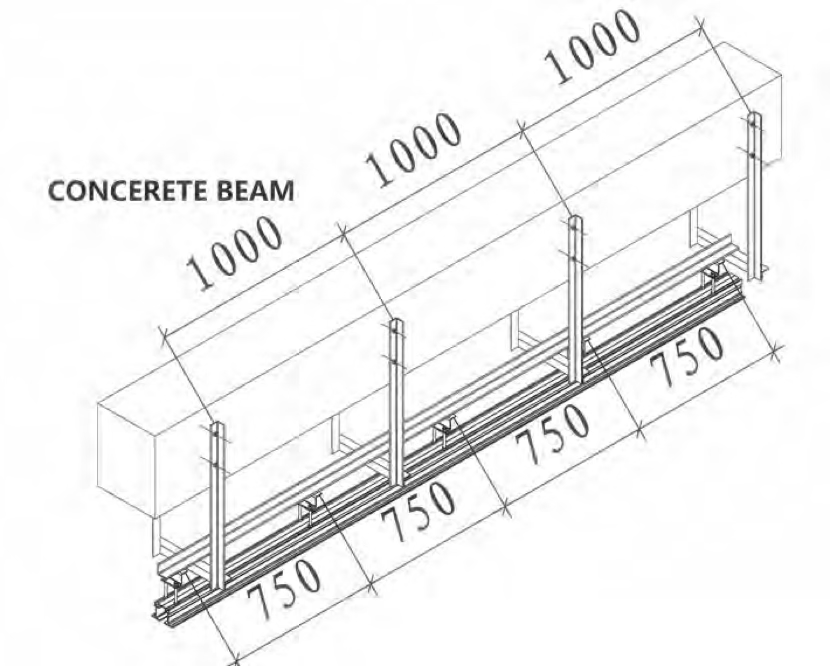

Option 2: Steel Support Structure (Most Flexible)

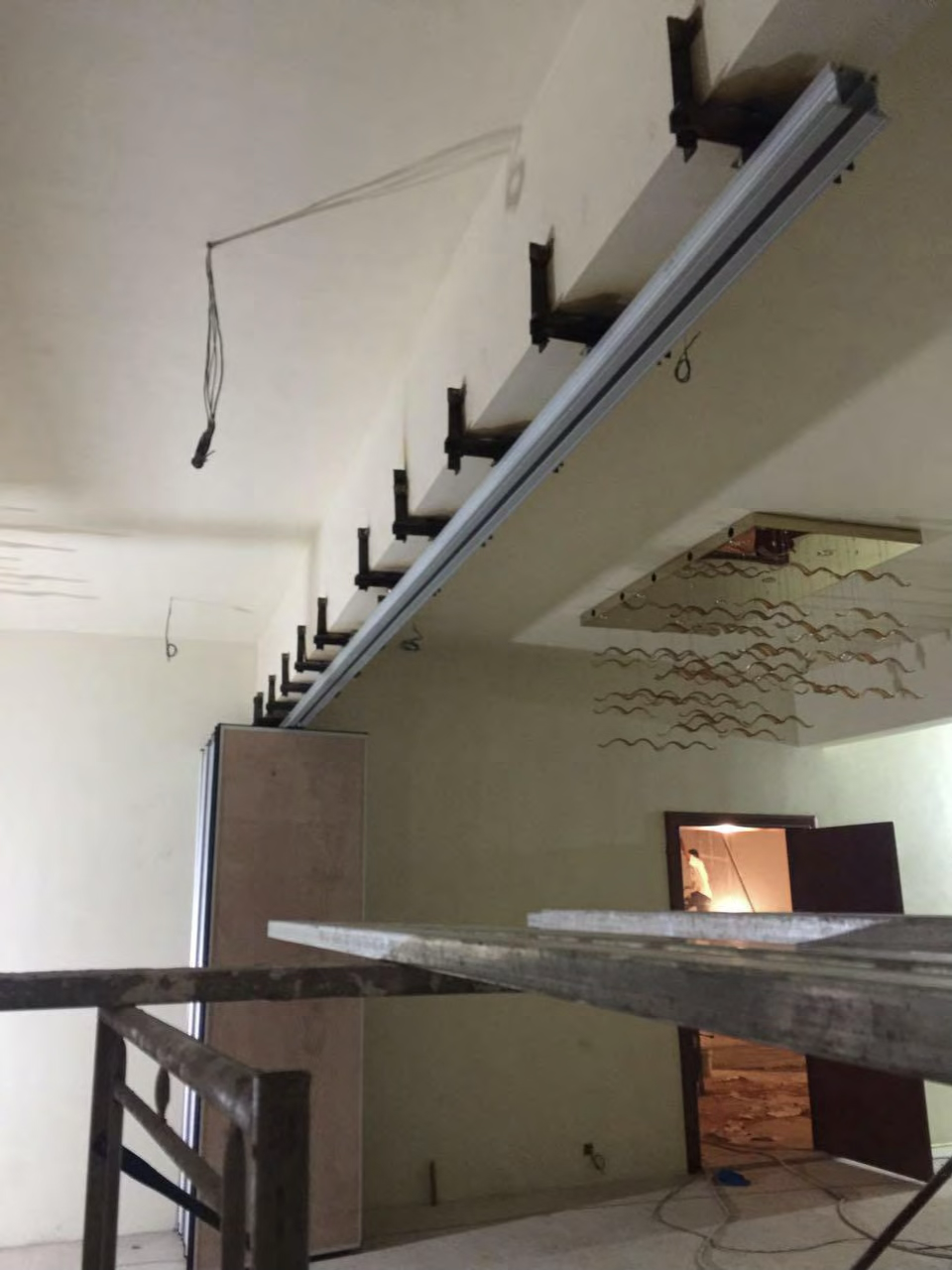

Custom-fabricated angle steel framework suspended from concrete. Accommodates complex ceiling conditions and heavy-duty partitions.

✅   Best for: High-traffic areas requiring maximum stability

⚠  M&W Detail: We provide engineered drawings based on your site measurements



Option 3: Square Tube Framework (Mid-Range Solution)



Lighter than full steel structure but more adjustable than direct mount. Uses 50×50×5mm mild steel with primer coating.



✅ Best for: Medium-height partitions (up to 4.5m) with moderate usage



Critical Performance Specs You Can't Ignore



Sound Insulation Ratings Demystified



Don't trust vague "soundproof" claims. Verify tested RW ratings:

• Basic partitions: RW 35-40 (suitable for visual separation only)
• Standard office needs: RW 45-50 (blocks normal conversation)
• Confidential spaces: RW 52-56 (M&W premium systems block 95% of speech)



Pro Tip: M&W partitions undergo SGS acoustic testing with published results.



Height & Weight Capacity Reality Check

System Type	Max Height	Panel Thickness	Weight Capacity
L500 Series	4.5m	69mm (MW65)	500kg/2 wheels
L800 Series	12m	89mm (MW85)	800kg/2 wheels
G2000 Series	20m	105mm (MW100)	2000kg/2 wheels
⚠️ Warning: Exceeding height/weight limits causes track deformation and safety hazards. Always match your space requirements to certified specs.



Installation Requirements Checklist (Save Time & Cost)



Before ordering, verify these with your building owner:



1.Ceiling Conditions Look for:

• Concrete slab access points (for direct mount)
• Headroom space between false ceiling and concrete (min 100mm)
• Load-bearing capacity at mounting points



2.Ceiling Track Specifications

• Concrete floor thickness (min 100mm for anchor bolts)
• Wall finish type (affects sealing strip selection)
• Threshold requirements at door openings



3. Required Tools

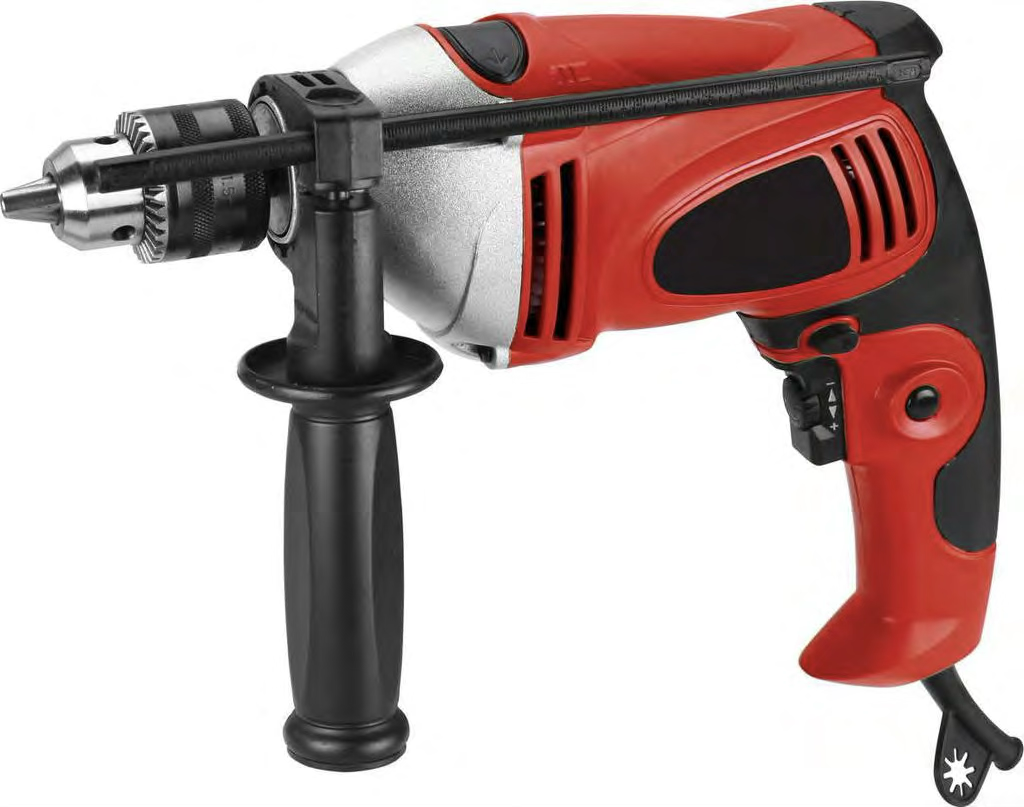

• Impact drill with concrete bits

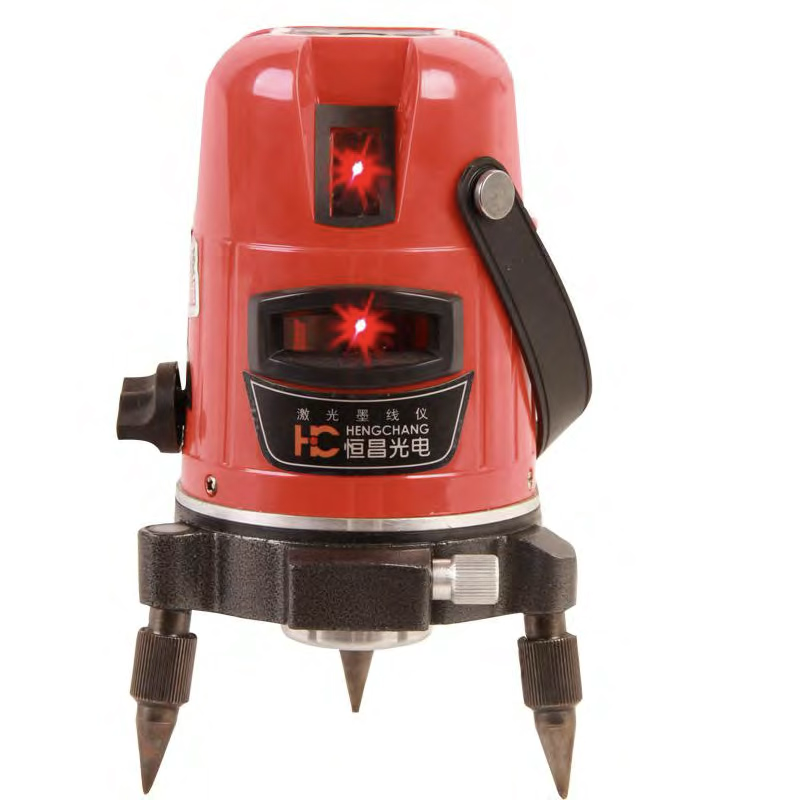

• Infrared measurement tool (for level alignment)

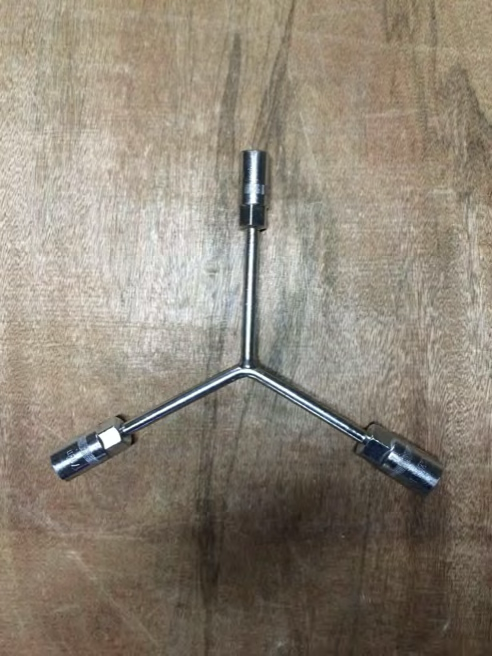

• Y-type and double open-end wrenches
• Welding machine (for custom steel structures)



4. Site Preparation

• Clear 2m workspace along partition path
• Temporary power access during installation
• Weekend/after-hours installation windows to avoid disruption



Real ROI: Beyond Space Division to Business Agility

A financial services client installed M&W L800 partitions in their 3,000 sq ft training center:



• Before: 1 fixed conference room + 1 training room ($42K renovation every layout change)
• After: 1 space transforming between 3 configurations in <15 minutes



6-Month Results:
✓ 43% increase in room utilization
✓ $28K saved on avoided renovation costs
✓ 3 additional revenue-generating events per month



The true value isn't in dividing space—it's in multiplying



M&W movable partitions deliver certified performance where it matters: acoustics, durability, and seamless adaptation to your evolving workspace needs. Request our free layout assessment to match your building conditions to the right partition system.
